Application
Blending, Deburring, Finishing, Grinding
Metal
Ferrous and/or non-ferrous metal
Stainless
Stainless steel, high tensile steel, titanium

Angle Grinder

Type 29 (Conical)

5/8-11 Super-Lock™ Hub

Contaminant Free

TrimBack™ Ceramic Type 29

Regular Density/ Type 29

  • Premium ceramic grain outlasts conventional zirconium in most applications
  • Specially designed ABS plastic backing can easily be trimmed away to expose more abrasive material

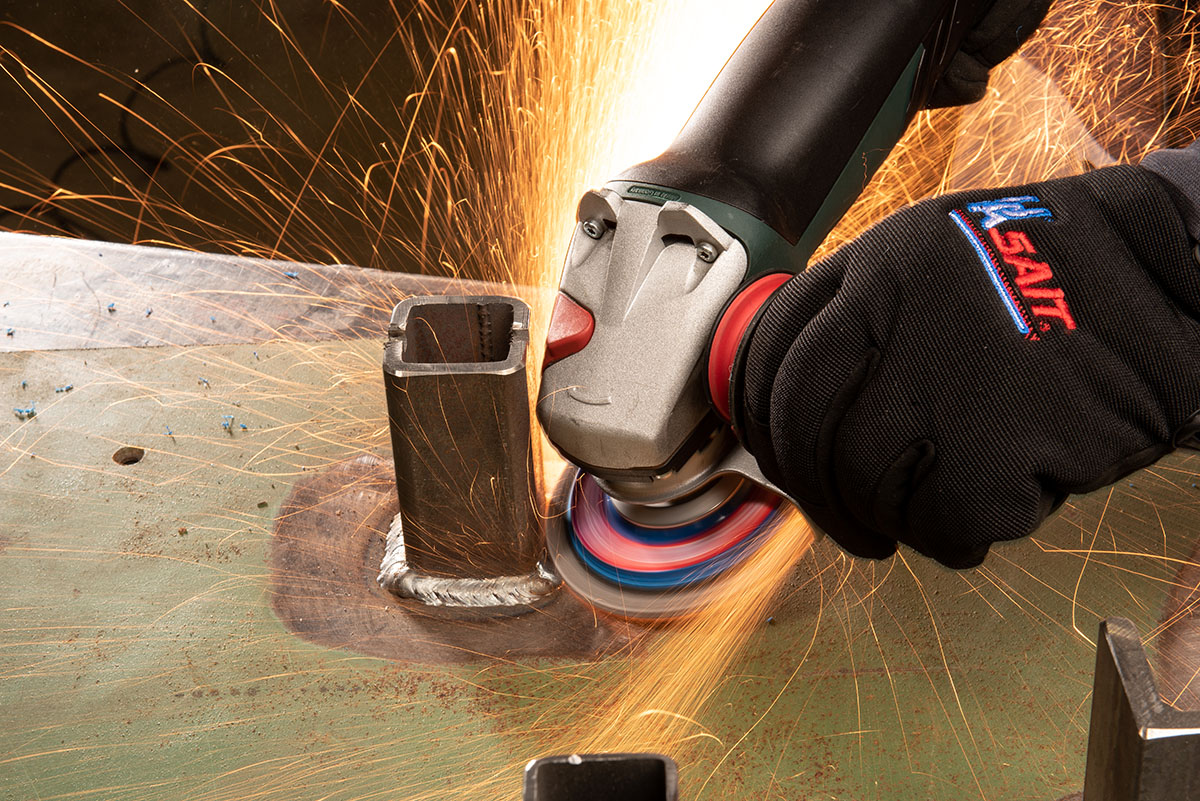

  • Unique design is ideal for hand rail and fillet weld applications
  • Contaminant Free (Fe + Cl + S < 0.1%)
  • Type 29
  • Only the TrimBack™ line of flap discs are able to be trimmed to expose more abrasive overhang
  • Never trim beyond the maximum trim line (more than 1/4") or the ridged edge of the backing TrimBack™ plastic backing
  • Always mount a TrimBack™ flap disc on a properly guarded right angle grinder
  • To properly trim a TrimBack™ flap disc, apply the plastic backing to a secured metal workpiece while the grinder is running
  • Our unique Super-Lock™ Hub combines both a mechanical locking system and chemical bond providing one of the safest, vibration-free designs in the industry
  • TrimBack™ Ceramic is also available in a Type 27 shape

Click the sections below to expand

DiaArborGritTypeMax RPMQtyPART #
4-1/2"5/8"-1136Type 29122001070921Buy Now
4-1/2"5/8"-1140Type 29122001070922Buy Now
4-1/2"5/8"-1160Type 29122001070923Buy Now
4-1/2"5/8"-1180Type 29122001070924Buy Now
5"5/8"-1136Type 29122001070927Buy Now
5"5/8"-1140Type 29122001070928Buy Now
5"5/8"-1160Type 29122001070929Buy Now
5"5/8"-1180Type 29122001070930Buy Now
DiaArborGritTypeMax RPMQtyPART #
4-1/2"7/8"36Type 29133001070821Buy Now
4-1/2"7/8"40Type 29133001070822Buy Now
4-1/2"7/8"60Type 29133001070823Buy Now
4-1/2"7/8"80Type 29133001070824Buy Now
5"7/8"36Type 29133001070827Buy Now
5"7/8"40Type 29133001070828Buy Now
5"7/8"60Type 29133001070829Buy Now
5"7/8"80Type 29133001070830Buy Now
